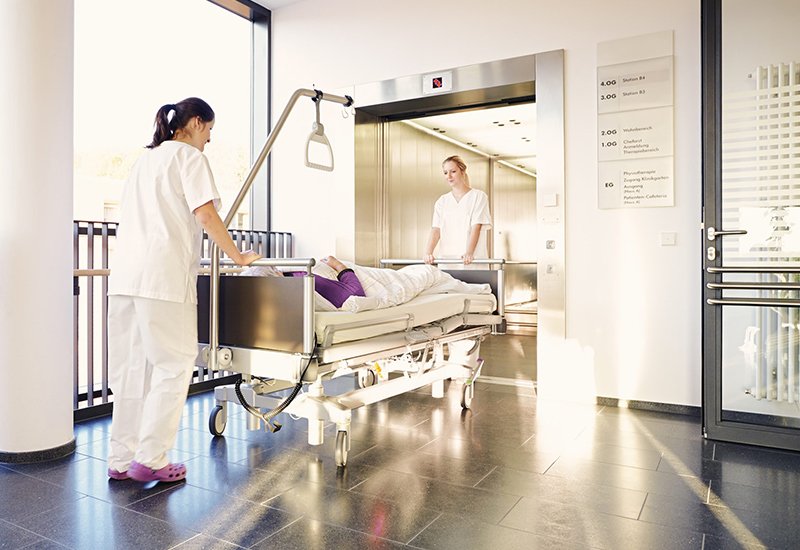

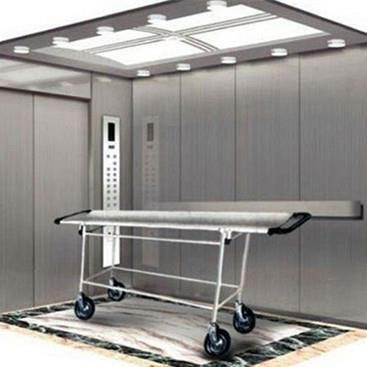

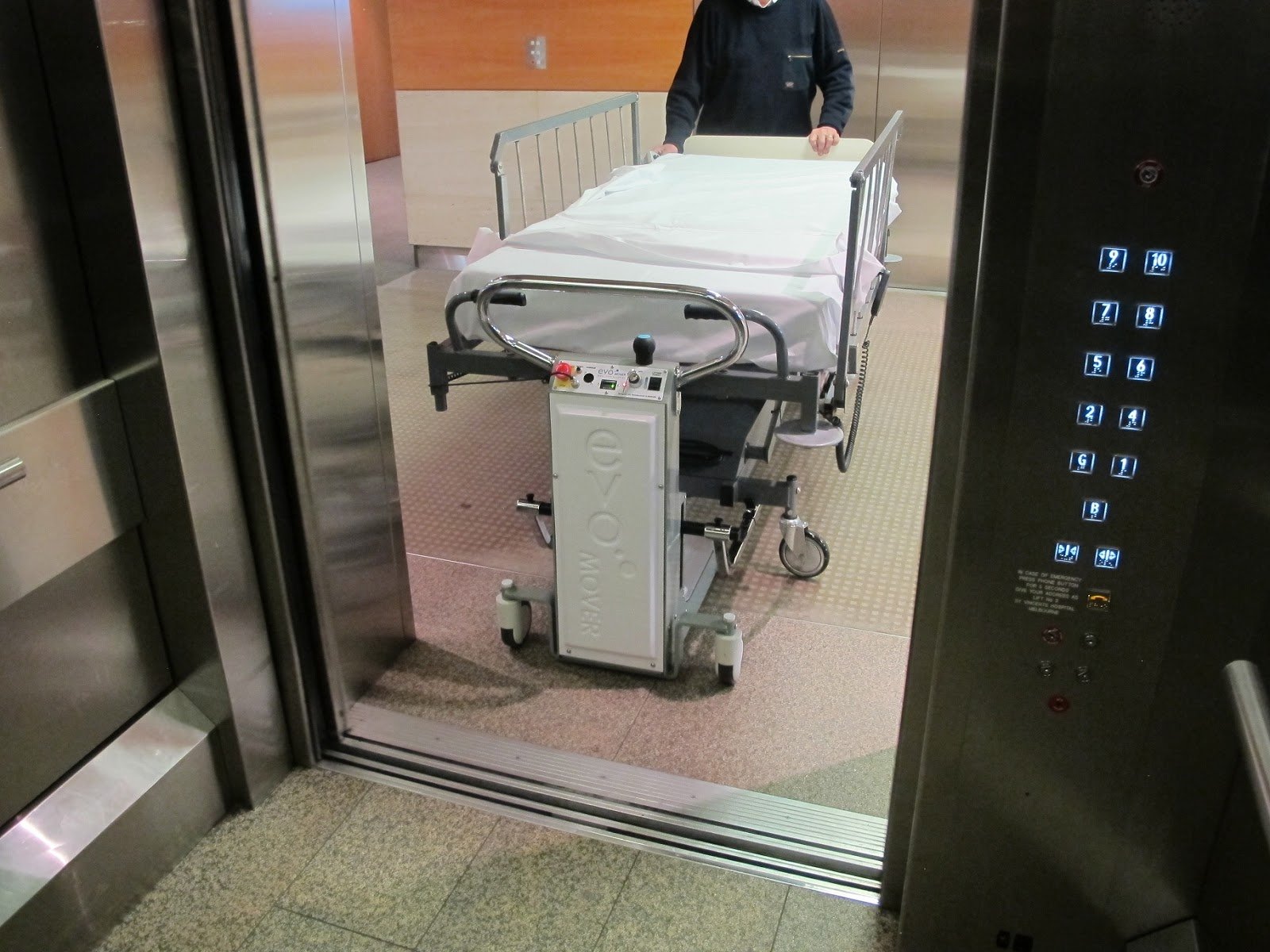

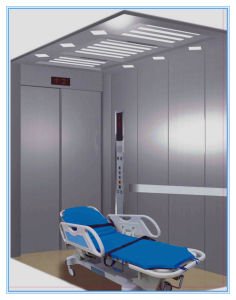

Bed & Hospital Elevators

The Vertical transportation system for modern hospitals have special requirements such as spacious & durable car, smooth & comfortable travel, accurate stop with emergency control features and above all, reliability with safety. The car dimensions are as per the lndian Standard requirements for Hospital lifts.

We have proficiency in producing a broad range of stretcher lifts that can be fitted in a stretcher or medical component with no trouble. Main features of these lifts are used for hospital purpose, modified as per client specifications, the best possible performance, and smooth operation. These stretcher lifts are mostly employed in hospitals & nursing homes.

Classification of Bed & Hospital Elevators

A - Bed & Hospital Elevators with machine room

In passenger elevator with machine room we mainly uses geared machines. We use percision mode geared traction machine. We use precision made geared traction machines to serve the lift industry. These machines use AC induction Motor and Worm Wheel Reduction Gear Box. These Machines are made for Long life and durability. The High Quality Lubricant is used to increase the Life of the Machine. These Geared Machines are used for speeds upto 2.0 mps and for height of upto 80 meters.

  • Compact mono block machine
  • Low vibration and voice level
  • Efficient electromagnetic brake system
  • High static load capacity
  • High torque and powerful driving force
  • Low power loss and low power consumption

B - Bed & Hospital Elevators without machine room (MRL lift)

In passenger elevator with no machine room a gearless machines is used. And the gearless machine will be house inside the shaft. We use precision made High Torque Permanent Magnet Synchronous Motor gearless traction machines. These Machines are highly efficient and consumes less Power as compared to Geared machines. As there is no Reduction gearbox, the machine ensures high efficiency. These machines are Sealed for life and do not require Oil Change. These machines also provide a smooth ride for the passengers as there is low noise and vibrations as compared to a geared machine. Most of the time the gearless machine is fitted with 2:1 roping which reduces the Kilowatt rating of the Machine required for carrying certain amount of load resulting in better efficiency These Machines save upto 30% power as compared to geared Machine. This Machine can be used for Machine Roomless applications. These Machines are used for low as well as for high speed application. All high rise, high speed elevators use gearless machines.

  • It cut down power and energy consumption
  • It cut down noise emission
  • Improve leveling
  • Less maintenance
  • No oil leakage and do not require lubrication
  • Compact size

Interior Panel Customization

1 - Bed & Hospital Elevators with fully Stanless steel cabin

2 - Bed & Hospital Elevators fully M.S powder coated cabin

3 - Bed & Hospital Elevators with customizable panel as per requirement of client

Specification

(III) MINIMUM REQUIRED CIVIL DIMENTION FOR HOSPITAL ELEVATORS
GEARED/GEARLESS MOTOR WITH MACHINE ROOM MODEL (all dimensions are in mm)
LOAD SPEED LIFT WELL CAR INSIDE ENTRANCE MACHINE ROOM PIT OVERHEAD
Person Kg (m/p/s) Width Depth Width Depth Car Opening Telescopic side Opening Width Depth Depth Height
10 680 0.5 to 2.5 1800 2000 1300 1350 800 800/900 2800 4000 1350 to 2500 4000 to 4500
13 884 0.5 to 2.5 2500 1700 2000 1100 900 900/1000 3500 3700 1350 to 2500 4000 to 4500
15 1020 0.5 to 2.5 1800 3000 1000 2400 900 2800 5000 1350 to 2500 4000 to 4500
20 1360 0.5 to 2.5 2200 3000 1300 2400 1000 1200 3200 5000 1350 to 2500 4000 to 4500
26 1768 0.5 to 2.5 2400 3000 1600 2400 1000 1200 3400 5000 1350 to 2500 4000 to 4500
